Tire Changers · Tilt-Back
BD13
Leverless Table-Top Tire Changer
Powers 0.75 / 1.1 kWVoltages 110V / 220V / 380VMax. Wheel Diameter 1080 mmOutside Clamping Range 11–24''
Specifications
BD13 specs
Outside Clamping Range
11–24''
Inside Clamping Range
13–26''
Rim Width
350 mm
Max. Wheel Diameter
1080 mm
Operation Speed
6 rpm
Powers
0.75 / 1.1 kW
Noise
<70 dB
Work Pressure
8–10 bar
Voltages
110V / 220V / 380V
N./G. Weight
353 / 413 kg
Packing DIM
1380 × 1130 × 1840 mm
Machine-Space DIM
1800 × 1800 × 2200 mm
Max QTY In Container
8 pcs (20'') & 16 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the BD13 — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the BD13 in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Crowbar-free bird head reversal
Automatic bird head reversal with extended tire removal hooks.
02
Reversing switch
Enables easy direction reversal to enhance operational flexibility and efficiency.
03
Automatic tire lifting device
Can lift up to 75 kg and assist in manually flipping the tire.
A closer look
Components & build detail
Key components and assemblies of the BD13.

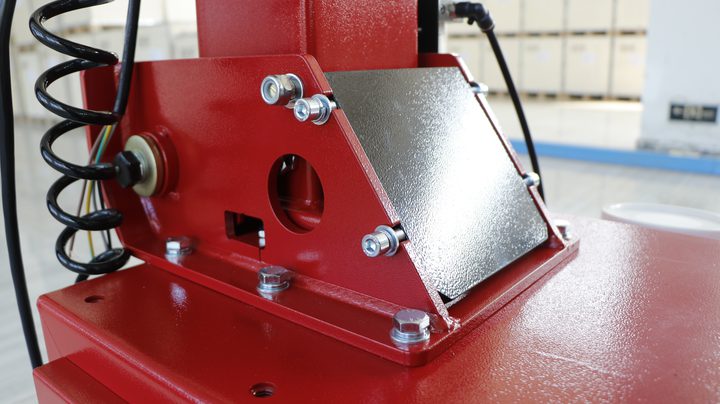

Tilt-back base

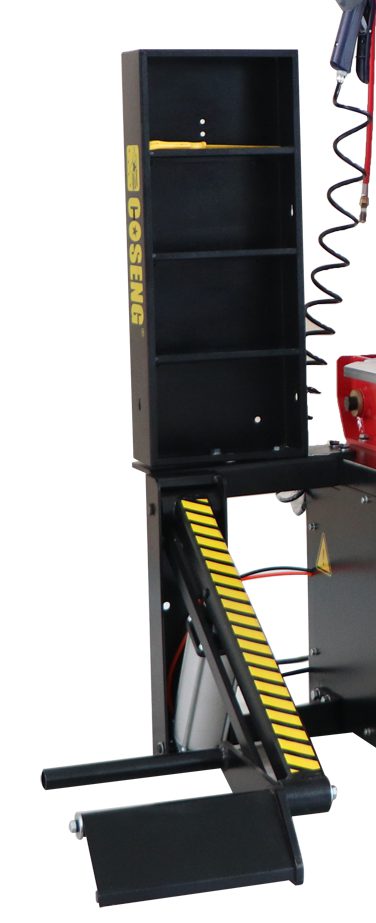

Tire support rack

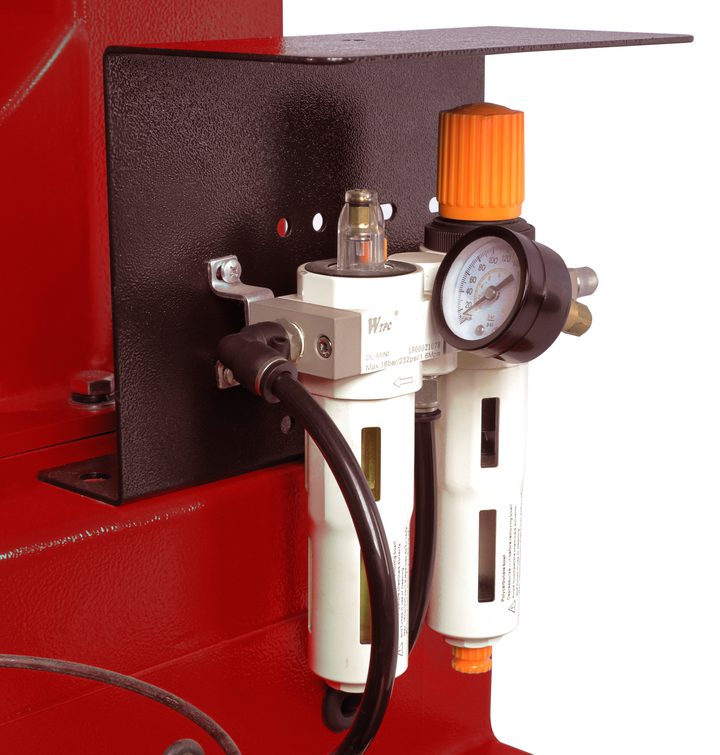

Air lubricator

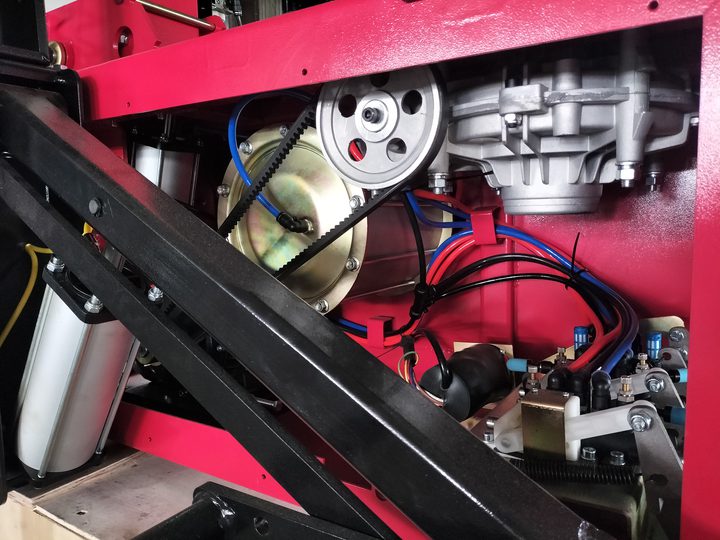

Cabinet interior

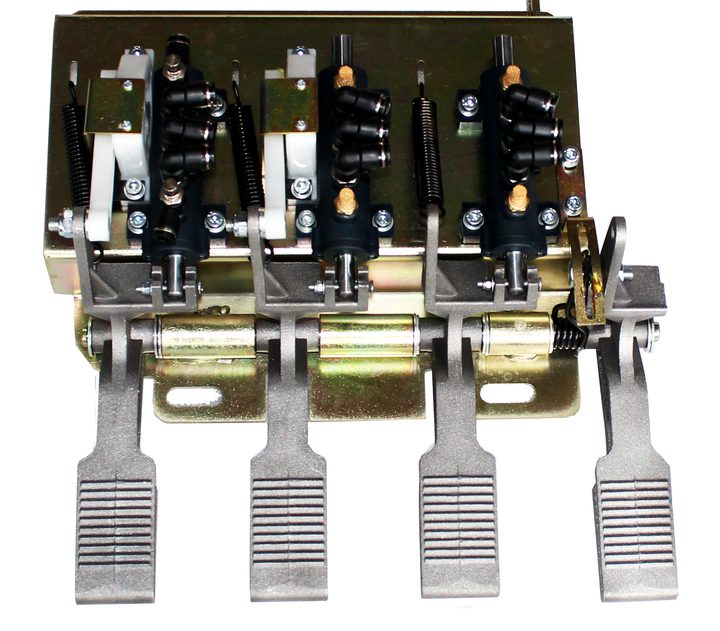

Foot pedals

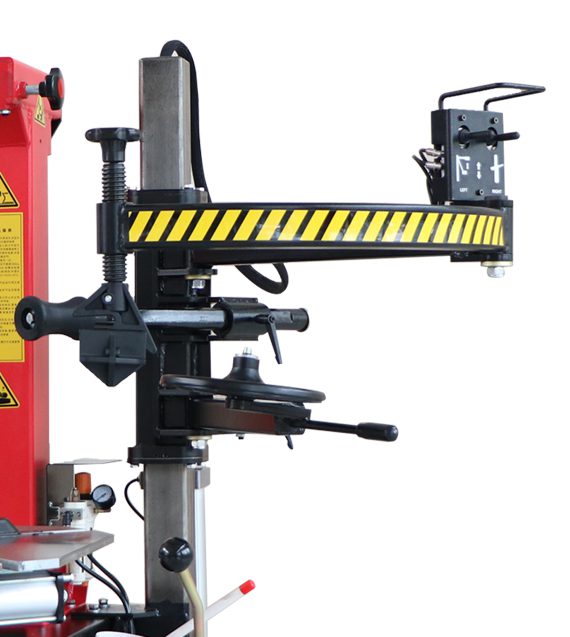

Auxiliary arm
In the crate
Standard accessories
Plastic CrowbarJaw Guards
Quote the BD13 for your market.
Send your country and quantity — our export team replies with pricing, lead time and container loading.
