Tire Changers · Leverless

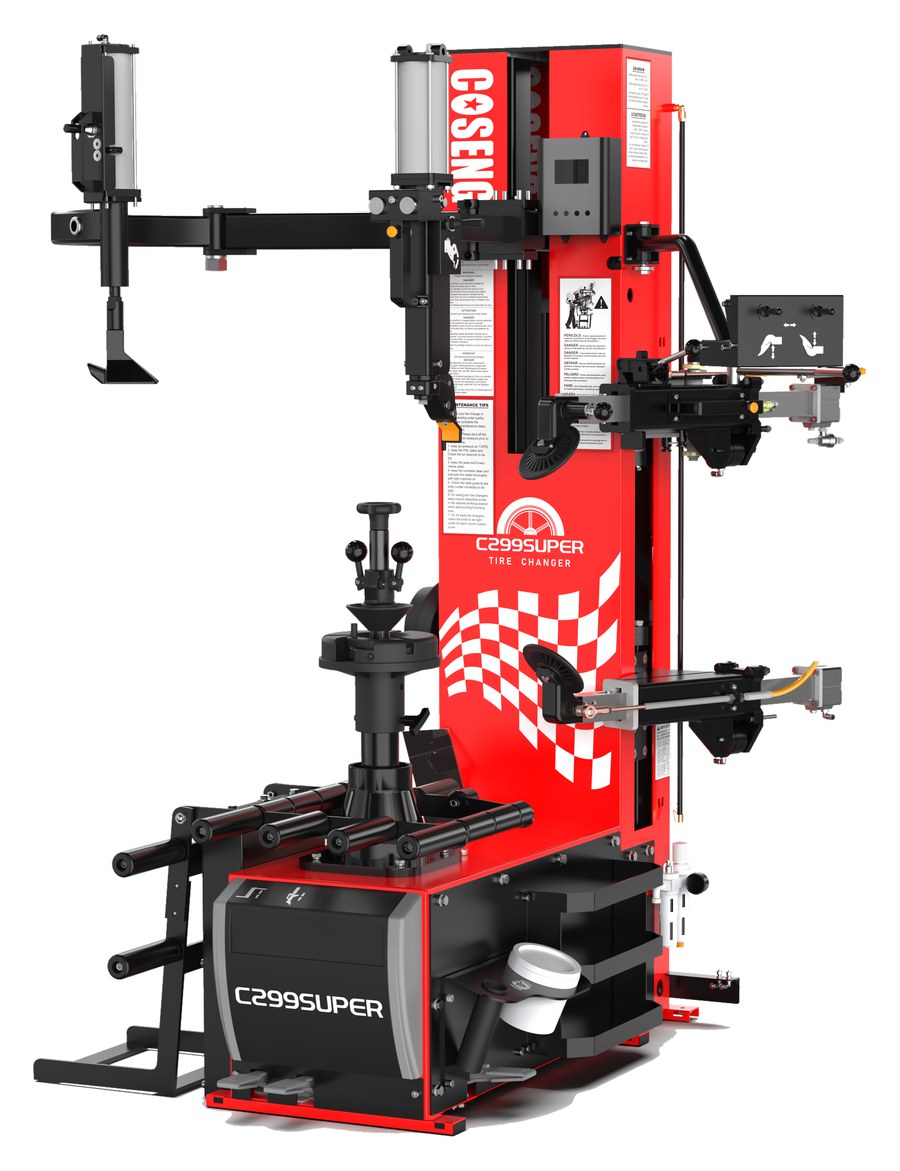

C299SUPER
Professional Center-Post Leverless Tire Changer
Rim Range 14–34''Powers 0.75 / 1.1 kWVoltages 110V / 220VMax. Wheel Diameter 1180 mm
Specifications
C299SUPER specs
Rim Range
14–34''
Max. Wheel Diameter
1180 mm
Rim Width
400 mm
Work Pressure
8–10 bar
Voltages
110V / 220V
Tire Lift Max Loading
75 kg
Noise
<70 dB
Operation Speed
0–12 rpm
Powers
0.75 / 1.1 kW
N./G. Weight
479 / 527 kg
Machine-Space DIM
1800 × 1800 × 2200 mm
Packing DIM
1320 × 770 × 2040 mm
Max QTY In Container
8 pcs (20'') & 18 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the C299SUPER — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the C299SUPER in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Durable construction
Solid one-piece structure enhances strength and longevity.
02
Synchronized dual-disc structure
Separated pressure plate and tray enable efficient tire/wheel shift.
03
One-key return
Return to a preset position with a single key press.
04
Precision servo motor
High-precision position control; adjustable speed from zero to max.
A closer look
Components & build detail
Key components and assemblies of the C299SUPER.

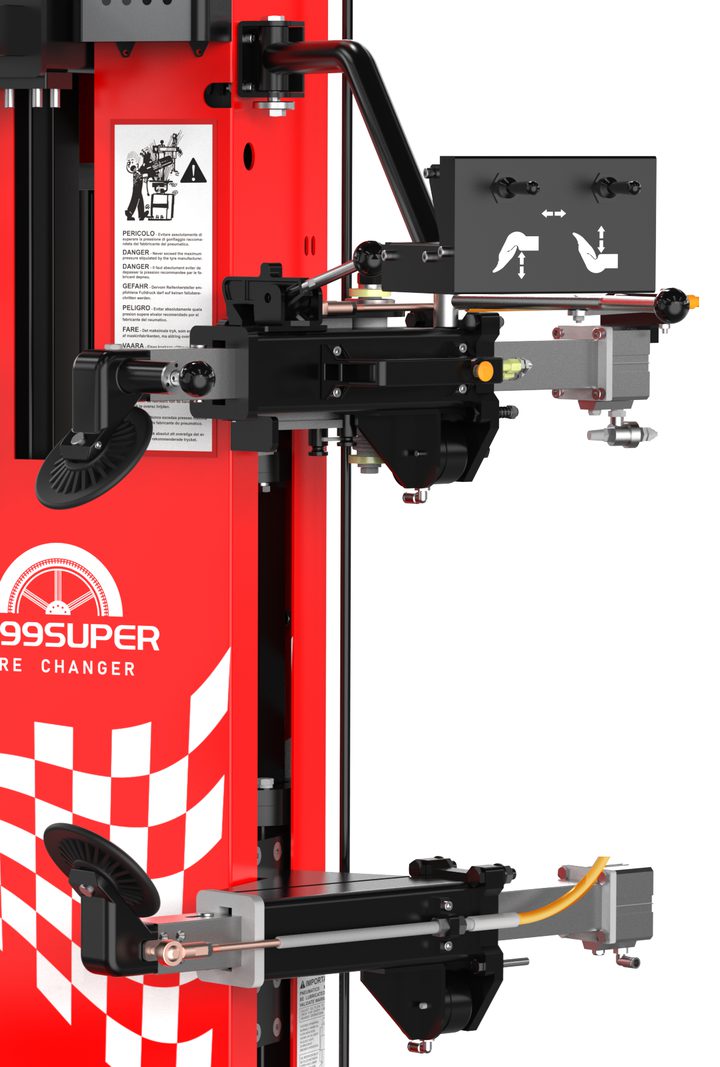

Upper & lower bead-breaker arms

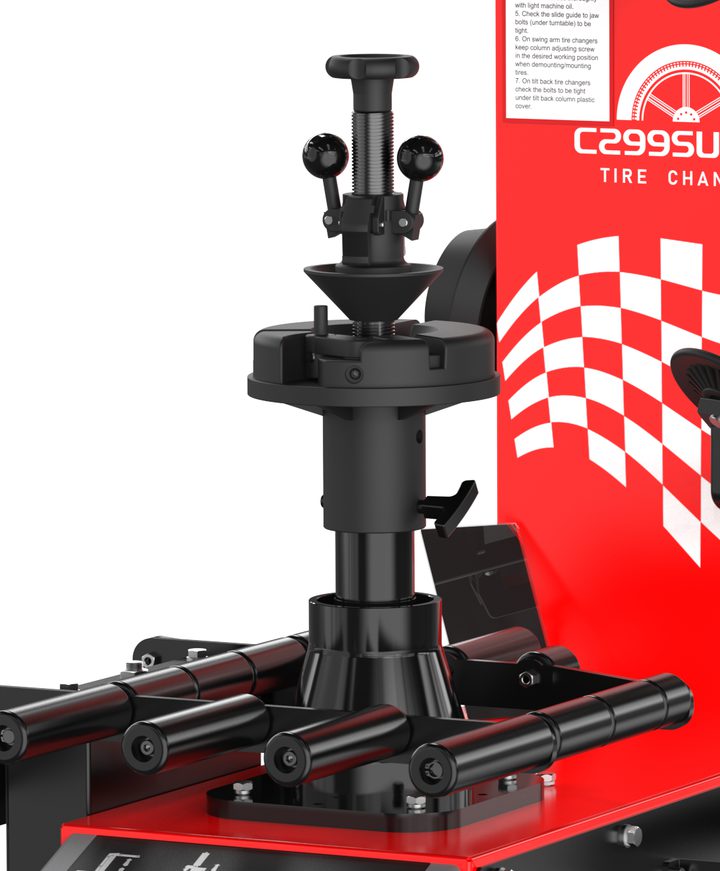

Center-post worktable

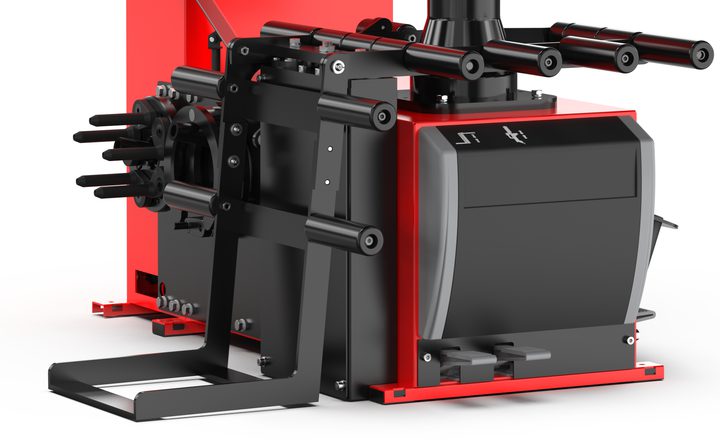

Tire support rack

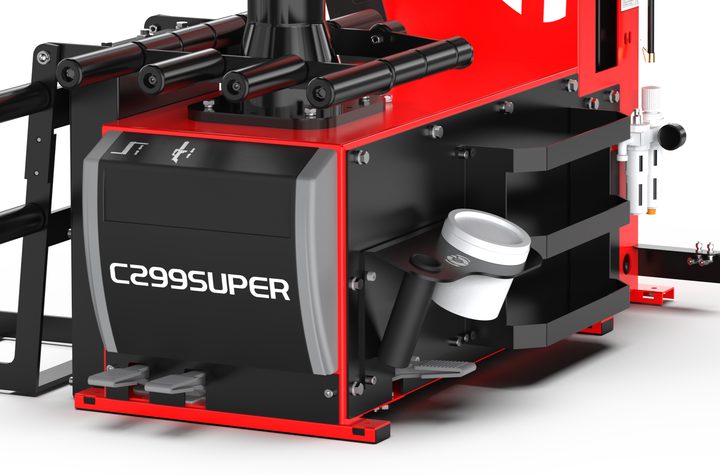

Cabinet

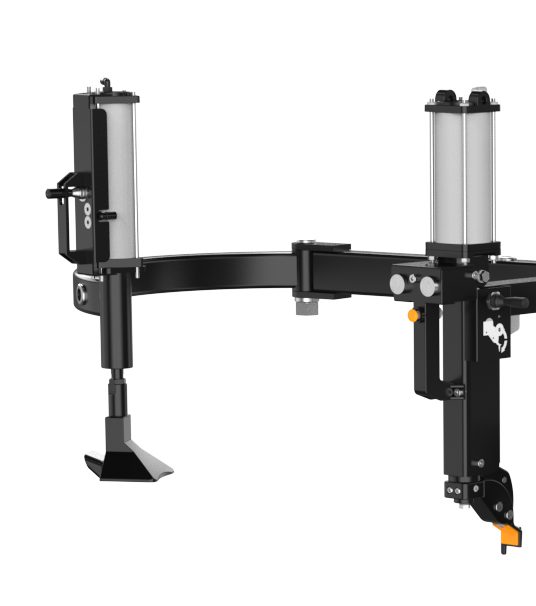

Auxiliary arm
In the crate
Standard accessories
Oversized cone
Bead presser plate
Reverse-mount adapter

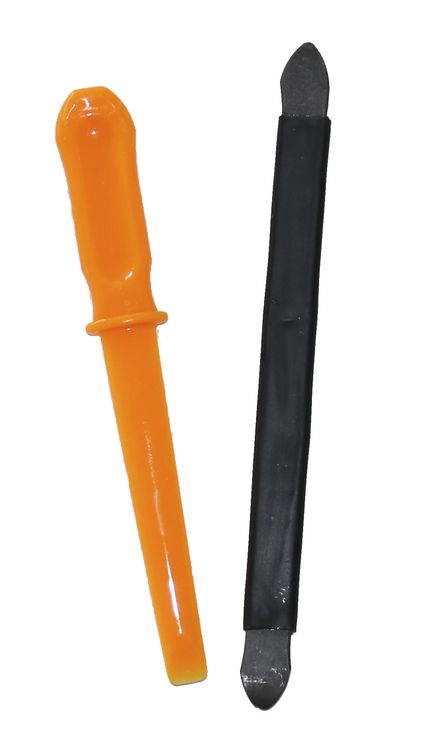

Plastic & metal tire levers
Riser plate
Bracket

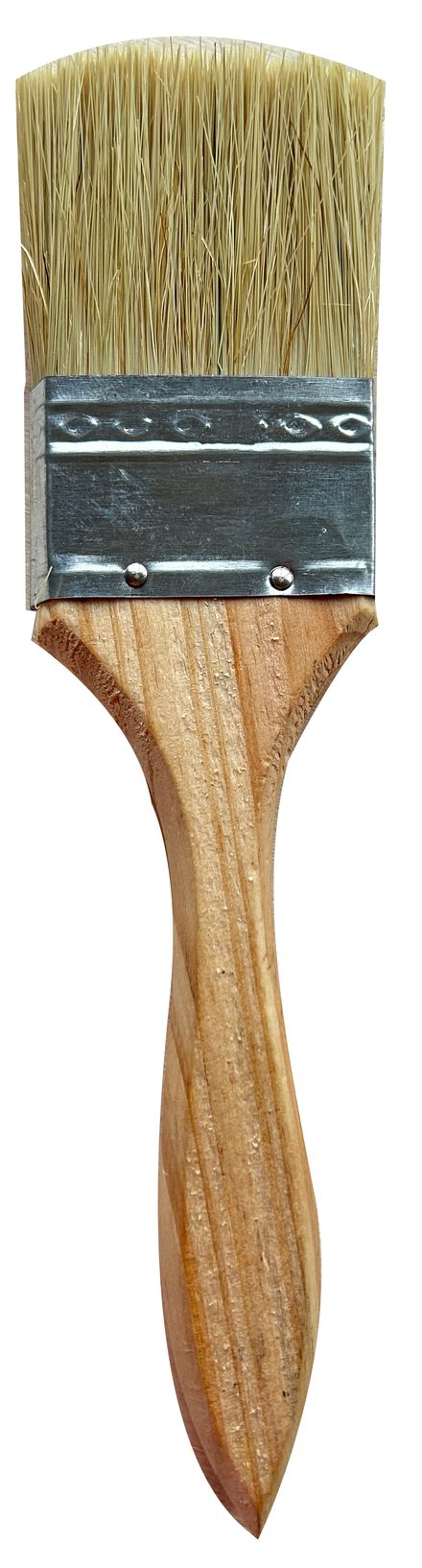

Brush
Lubricant paste

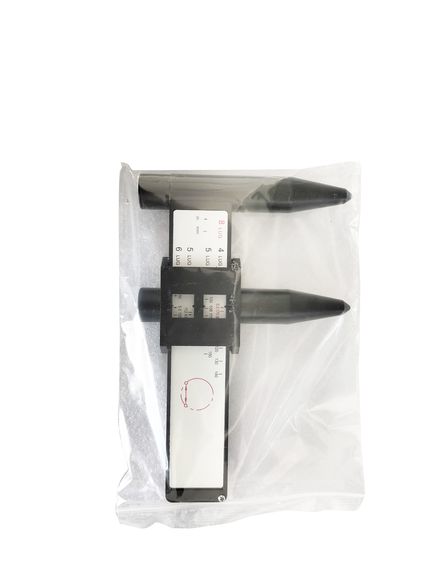

Measuring gauge

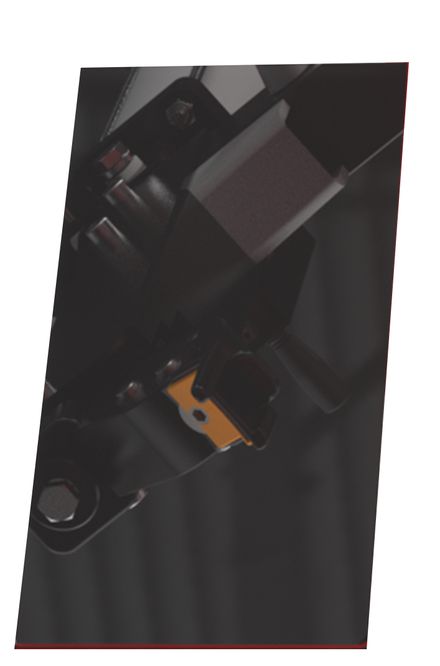

Inspection mirror

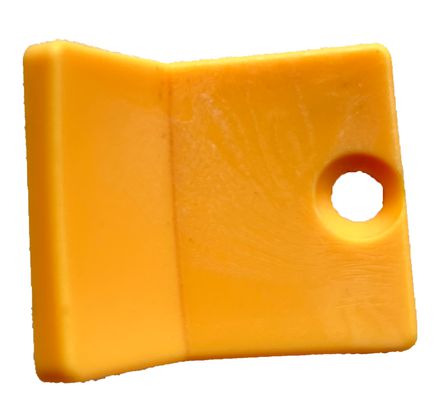

Mounting-head gasket
Quote the C299SUPER for your market.
Send your country and quantity — our export team replies with pricing, lead time and container loading.
