Tire Changers · Heavy-Duty
C201GBL
Compact Swing Arm Tire Changer
Powers 0.75 kW / 1.1 kWVoltages 110V / 220V / 380VMax. Wheel Diameter 960 mmOutside Clamping Range 10–21''
Specifications
C201GBL specs
Outside Clamping Range
10–21''
Inside Clamping Range
12–24''
Rim Width
315 mm
Max. Wheel Diameter
960 mm
Work Pressure
8–10 bar
Operation Speed
6 rpm
Voltages
110V / 220V / 380V
Powers
0.75 kW / 1.1 kW
N./G. Weight
175 / 200 kg
Packing DIM
970 × 770 × 850 mm
Machine-Space DIM
1800 × 1800 × 2200 mm
Noise
<70 dB
Max QTY In Container
36 pcs (20'') & 72 pcs (40'')
Resources
Docs & media
📄
Product brochure
Factory datasheet for the C201GBL — specifications, features and standard accessories (PDF).
⬇ Download brochure (PDF)▶
Product video
See the C201GBL in operation.
⏳ Video coming soonFeatures
What sets it apart
01
Flat tire demounting head
Special material demounting head with thicker hexagonal shaft is suitable for flat tire demounting.
02
Large ∅185 cylinder
2000–2500 kgf pressure output for heavy-duty demounting needs.
03
Manganese steel disk
Hardness, wear resistance and impact resistance for long time operation.
In the crate
Standard accessories
20-inch tire lever
Hex-rod cap
Hex-rod spring
Press-rod cap
Multi-function inflator gun
Mounting-head gasket
Bracket

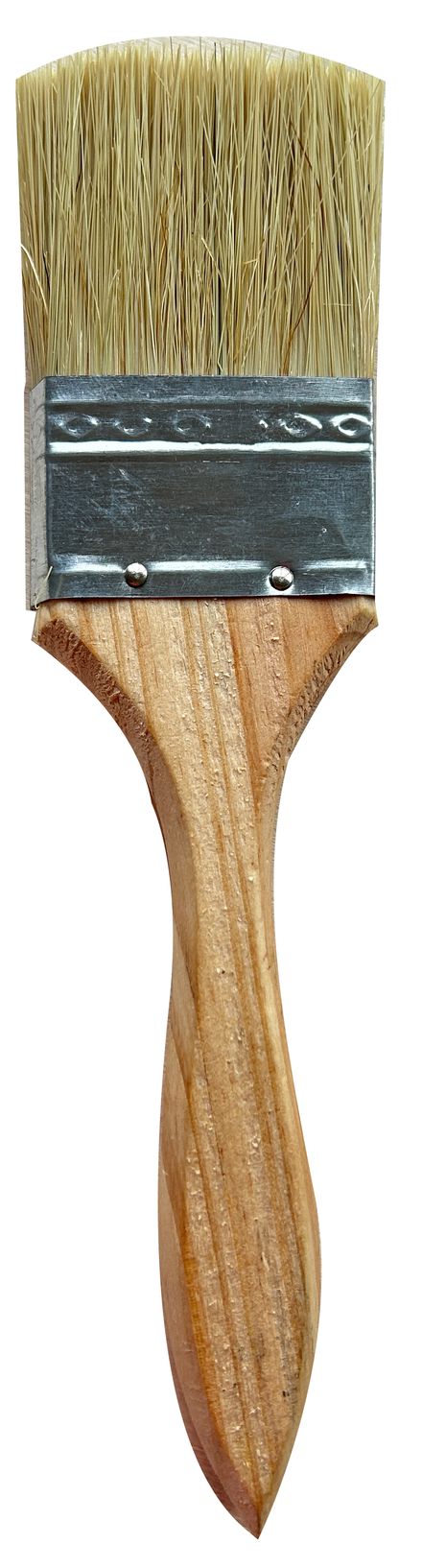

Brush
Oil cup

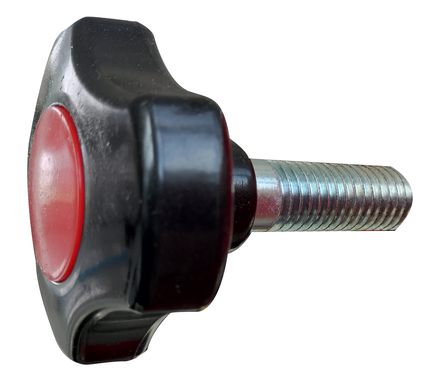

Adjusting nut
Quote the C201GBL for your market.
Send your country and quantity — our export team replies with pricing, lead time and container loading.
